2017 Shotgun Microphone
High-performance condenser shotgun microphone with a wide frequency range and low distortion More information
The DPA 2017 Shotgun Microphone is renowned for its exceptional durability and acoustical performance. It offers crystal-clear, authentic sound and impressive off-axis rejection, making it ideal for a wide range of applications, even in challenging environments such as cold weather and high humidity. The microphone's design combines extreme directionality with a compact housing, ensuring ease of use and consistent results. It also boasts low self-noise, making it suitable for quiet sources and scenarios with multiple open microphones. Rigorous testing has confirmed its resilience, and meticulous design choices have optimized its performance and durability through scientific approaches and algorithm optimization.
Specifications:
- Directional Patter Supercardioid 1kHz
- catridge type Pre-polarized condenser
- Frequency response 20Hz - 20kHz
- Effective requency range, at 60cm (23.6in), with typ. soft boost at 15kHz 70Hz - 18kHz
- Sensitivity, nominal, ±2 dB at 1 kHz 25 mV/Pa; -32 dB re. 1 V/Pa
- Equivalent noise level, A-weighted Typ. 13 dB(A) re. 20 μPa (max. 15 dB(A))
- Distortion, THD < 1% 140 dB SPL RMS, 143 dB SPL peak
- Max. SPL, THD 10% 148 dB SPL peak
- Dynamic range Typ. 130 dB
What's in the box:
- 1x DPA 2017 Shotgun Microphone

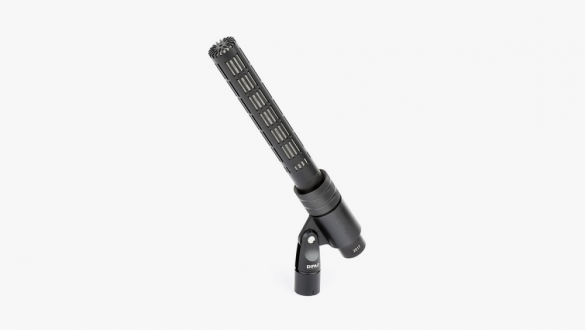

- 1x Microphone Holder
- 1x Windscreen
- 1x Practical zip puch for storage and transport
Parameters
Color | Black |
---|---|
Length | 18.4cm |
Frequency range | 20 Hz - 20000 Hz |
Weight | 115 g |
Connector | XLR-3M |
Material | Aluminium |
Max spl (1% thd) | 143 dB SPL |
Power suplies | 48 V phantom |
Diameter | 19 mm |
Directionality | Super-cardioid |
Microphone type | Pre-polarised condenser microphone |
