vmDBOX-HRS-cc
Brand: Audioroot
Product code: vmDBOX-HRS-cc
Power distributor for sound bag with built-in volt/amp/Ah meters/Hirose connectors More information

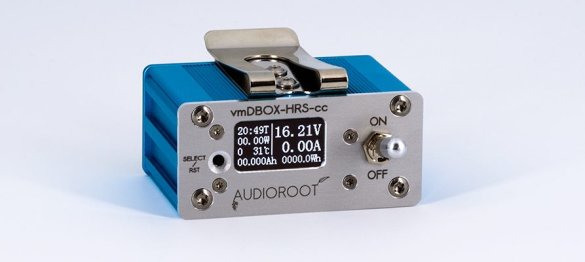

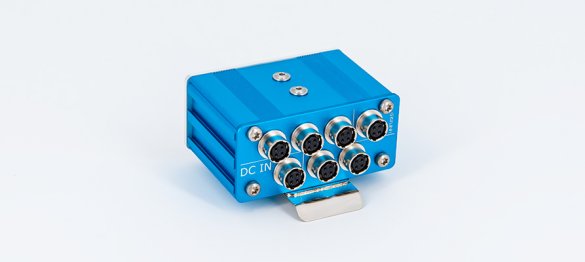

The Audioroot vmDBOX-HRS-cc is an ultra-small, DC power distribution box with 6 DC outputs and an integrated multi function meter designed for ENG sound bags. All cables enter and exit from the bottom of the box yielding a much smaller footprint in your bag. The vmDBOX-HRS has a DC input connector and 6 DC outs all on rugged Hirose locking connectors. 5 outputs are protected with a 2.5 amp resettable fuse. One output is left unfused.
- Integrated white OLED display with voltmeter, ampmeter, Ahmeter, wattmeter and timer for battery or power supply monitoring
- 6 power outputs switchable with one rugged locking switch
- 5 x outputs with 2.5A polyswitch resetable fuses
- 1 x unprotected output
- 1 x belt clip mountable on top or bottom of the housing
- Compatible with any battery or power supply ranging from 5.0V to 24V DC
- Hirose locking connectors
- Very low power consumption : the vmDBOX-HRS-cc does not affect the battery’s autonomy
- Compact and lightweight : 119g / 65 x 50 x 30 mm
- Maximum recommended total current load : 7A
Parameters
Color | Blue, Silver |
---|---|
Length | 5 cm |
Weight | 119 g |
Connector | Hirose 4-pin |
Material | Aluminium |
Power suplies | 5 - 24 V |
Current consumption | max. 7 A |
Width | 65 mm |
Height | 30 mm |
